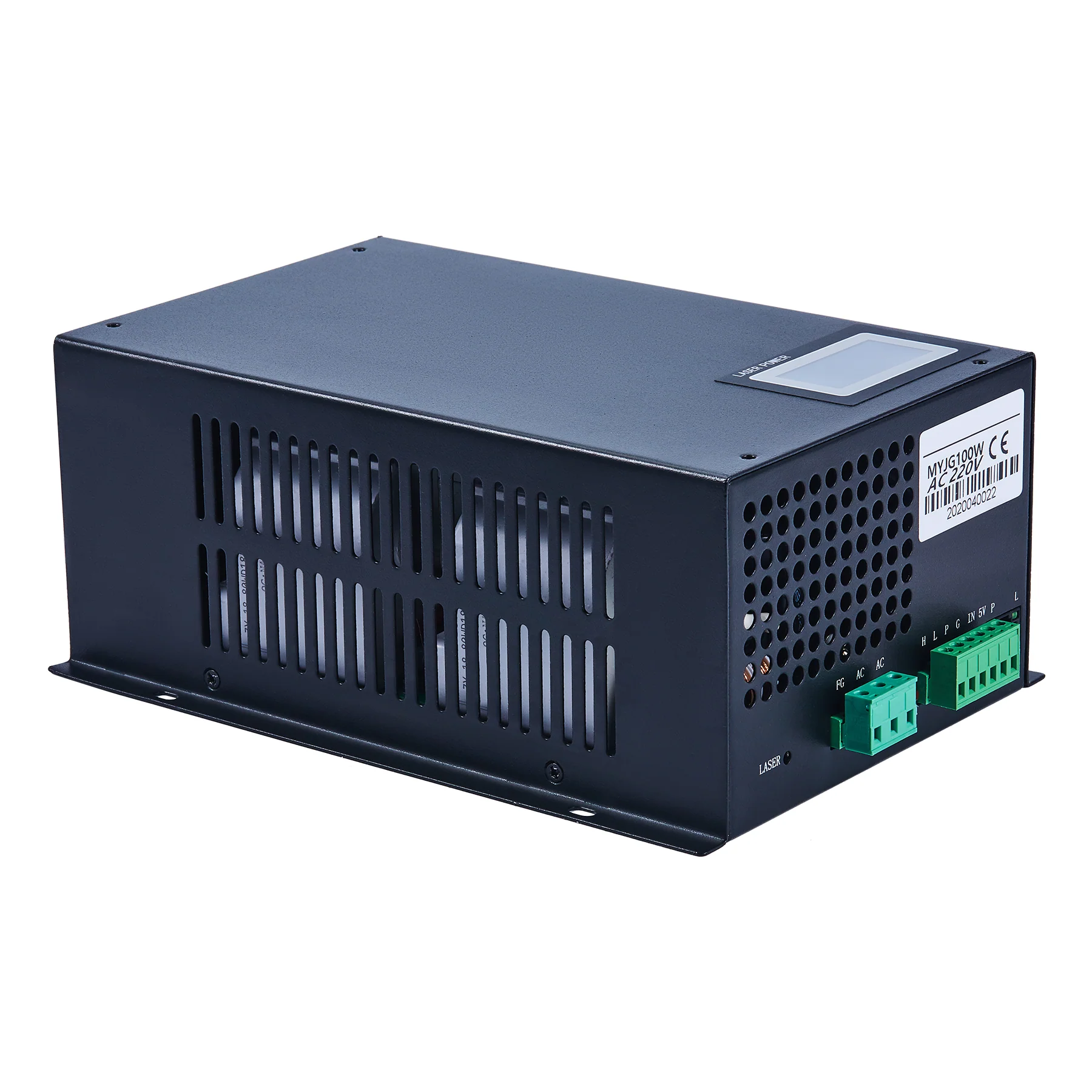

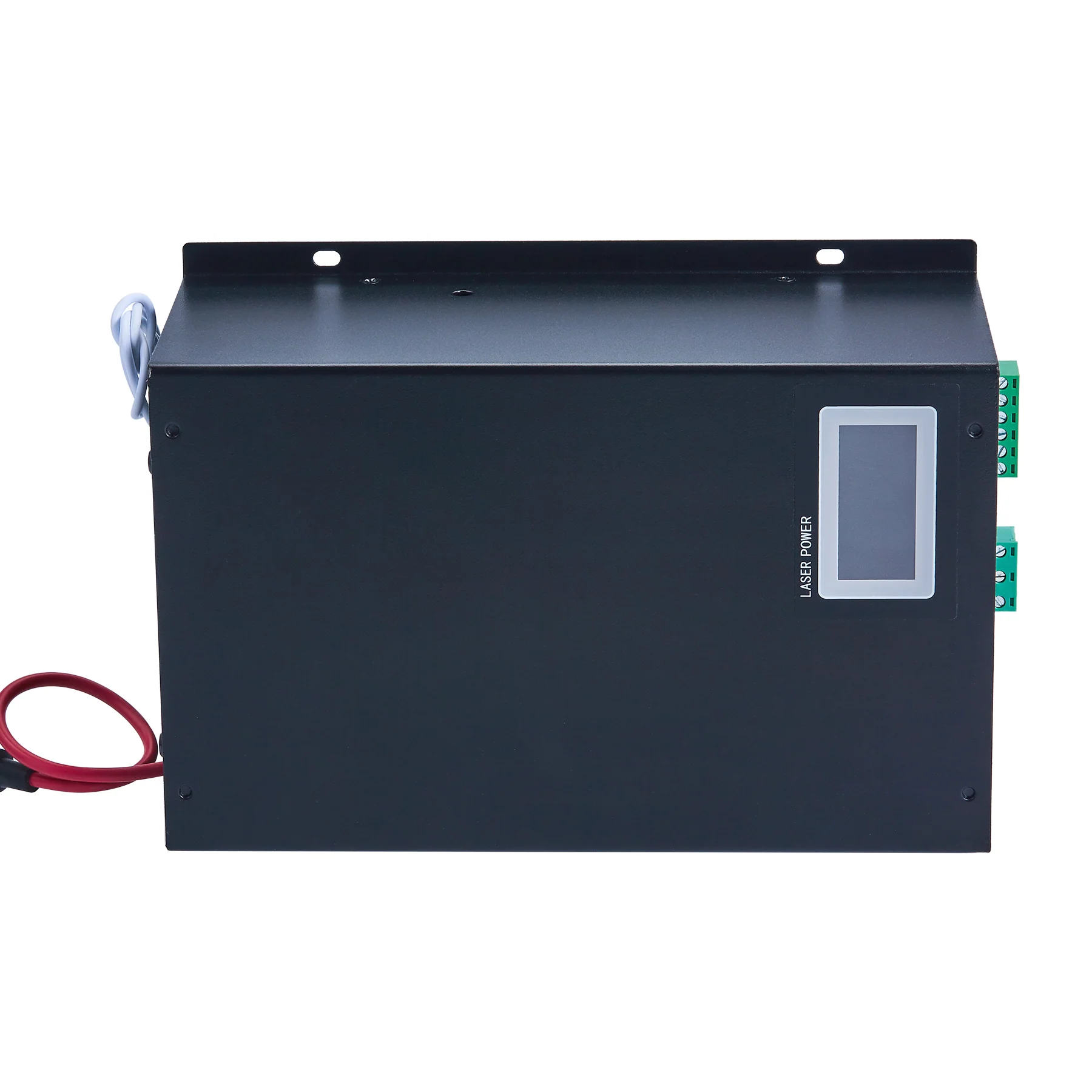

100W Laser Power Supply Decription

Convenient Size:

• Dimensions: 230 x 161 x 96 mm (9.1 x 6.3 x 3.3 in.)
• Weight: 3.0 kg (6.6 lb.)

Power:

• Output Power: 100W
• Input Voltage: 220V AC
• Input AC Frequency: 47-440Hz
• Max Input Power: 450W
• Max Input Current: 3A
• Max. Output Voltage: 28kV DC
• Max. Output Current: 30mA DC
• Efficiency: ≥ 90%
• Mean Time Between Failure (MTBF): ≥ 30,000 hr.
• Response Time: ≤ 1 millisecond
• High-Level Voltage Range: ≥ 3.0V
• Low-Level Voltage Range: ≤ 0.7V
• Operating Environment: -30 to 65℃ (-22 to 149℉)

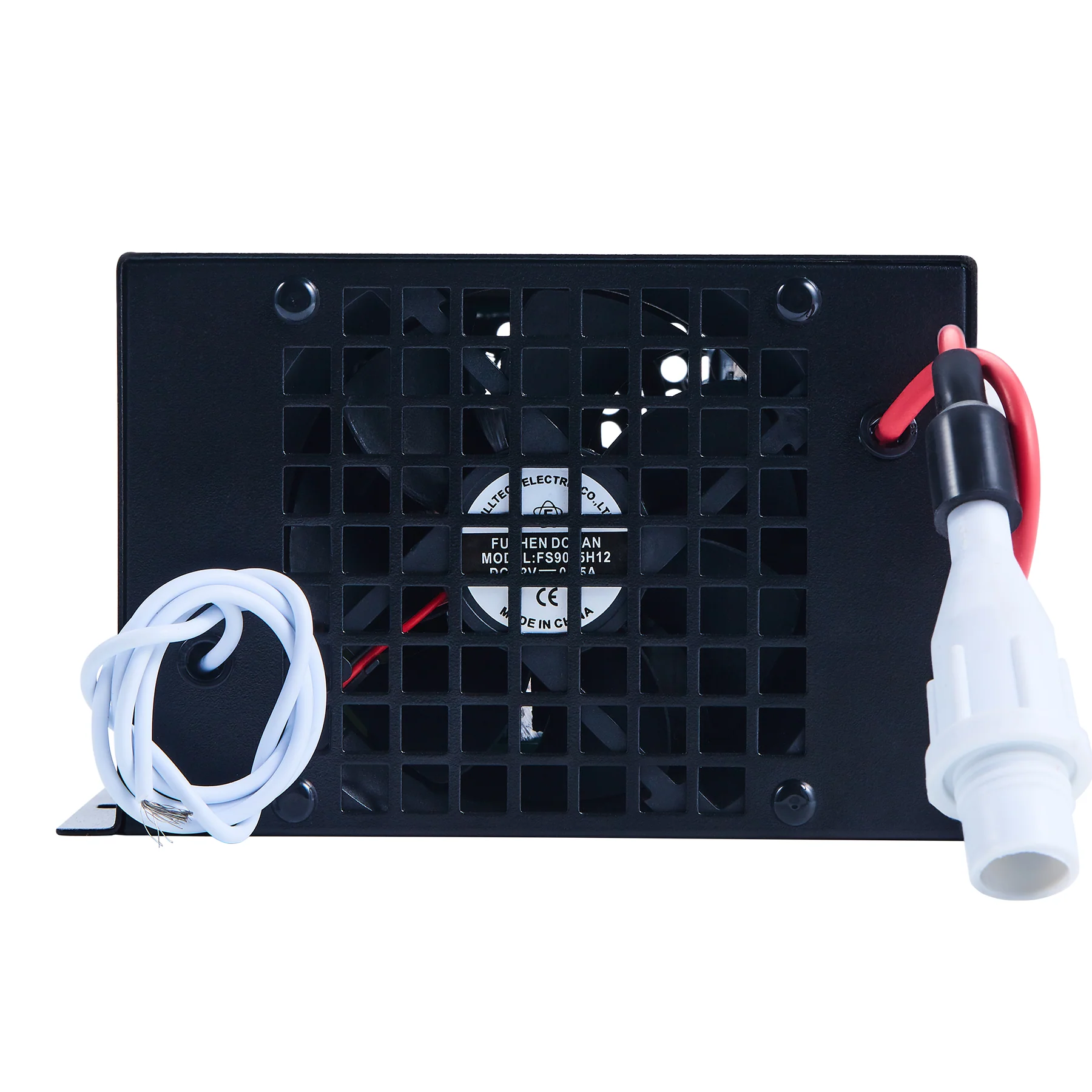

• Cooling System: Forced-Air Cooling (FAC)
• Temperate Testing: Tested to Operate at Full Load for 12 hours at 60℃ (140℉)
• Start/Stop Test: Turned on and off 500 times in 7 seconds

Cutting Edge Features:

• High Performance: Our 100W laser power supply delivers excellent performance with greater than 90% efficiency and fast 1-millisecond response times. Get the most out of your laser tube with our safe, stable, and capable power supply.
• Simple & Intuitive Control: Easily toggle power by TTL level, and if you need more precise control, you can adjust your laser power with 0-5V analog or PWM signals.

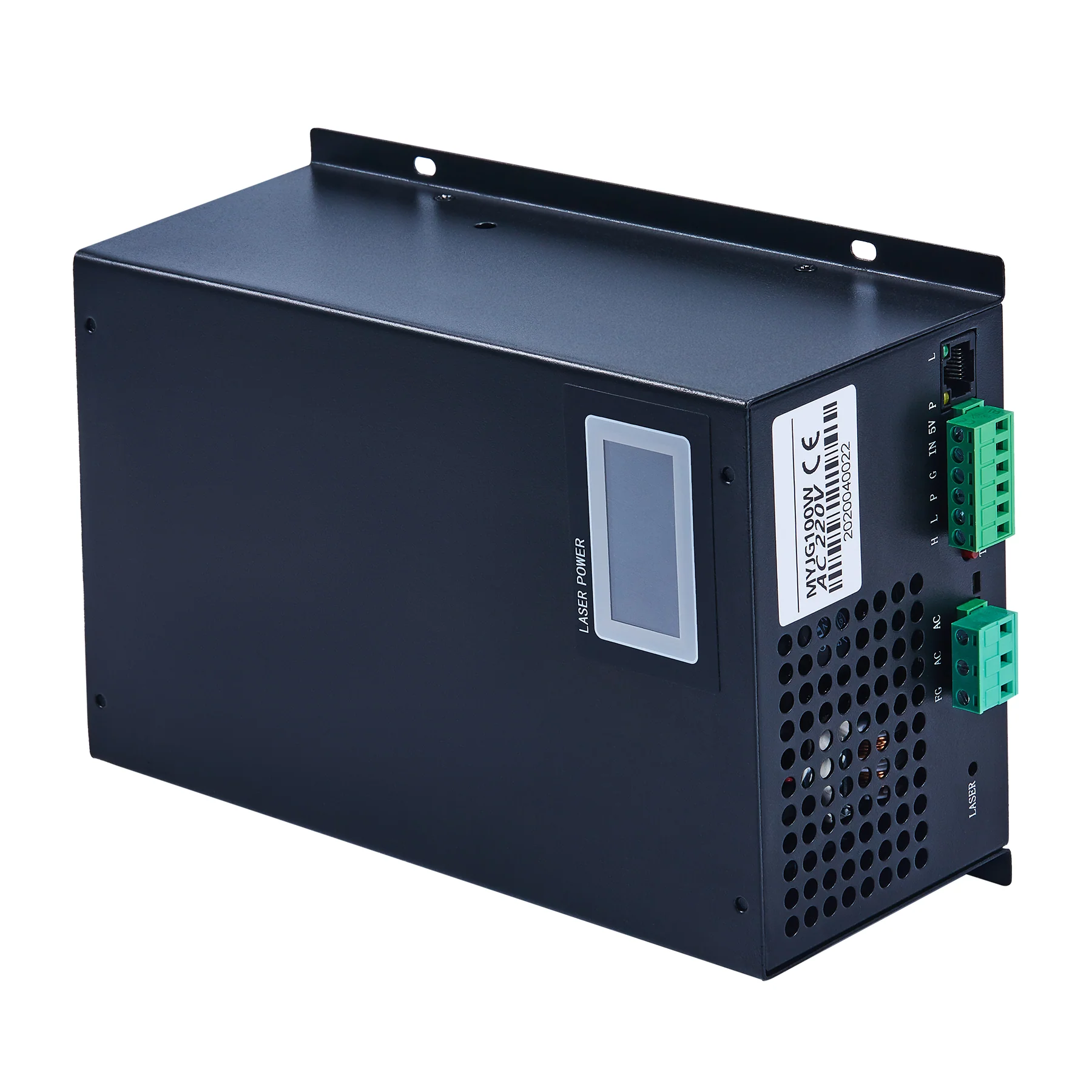

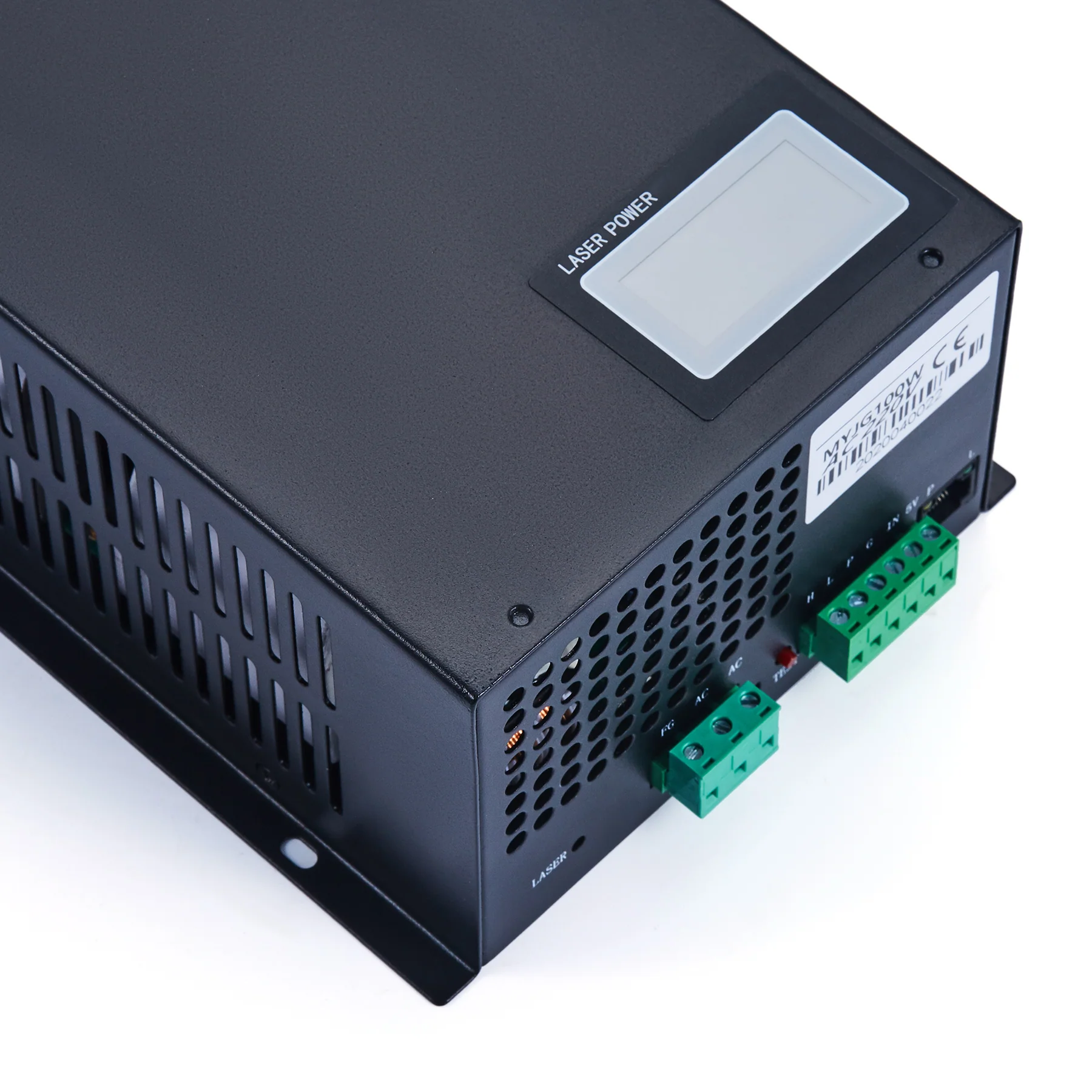

• Real-Time LCD Display: The built-in LCD display conveniently provides the output current amperage as well as the status of the laser and water protection, so you can easily monitor and troubleshoot your laser engraver.

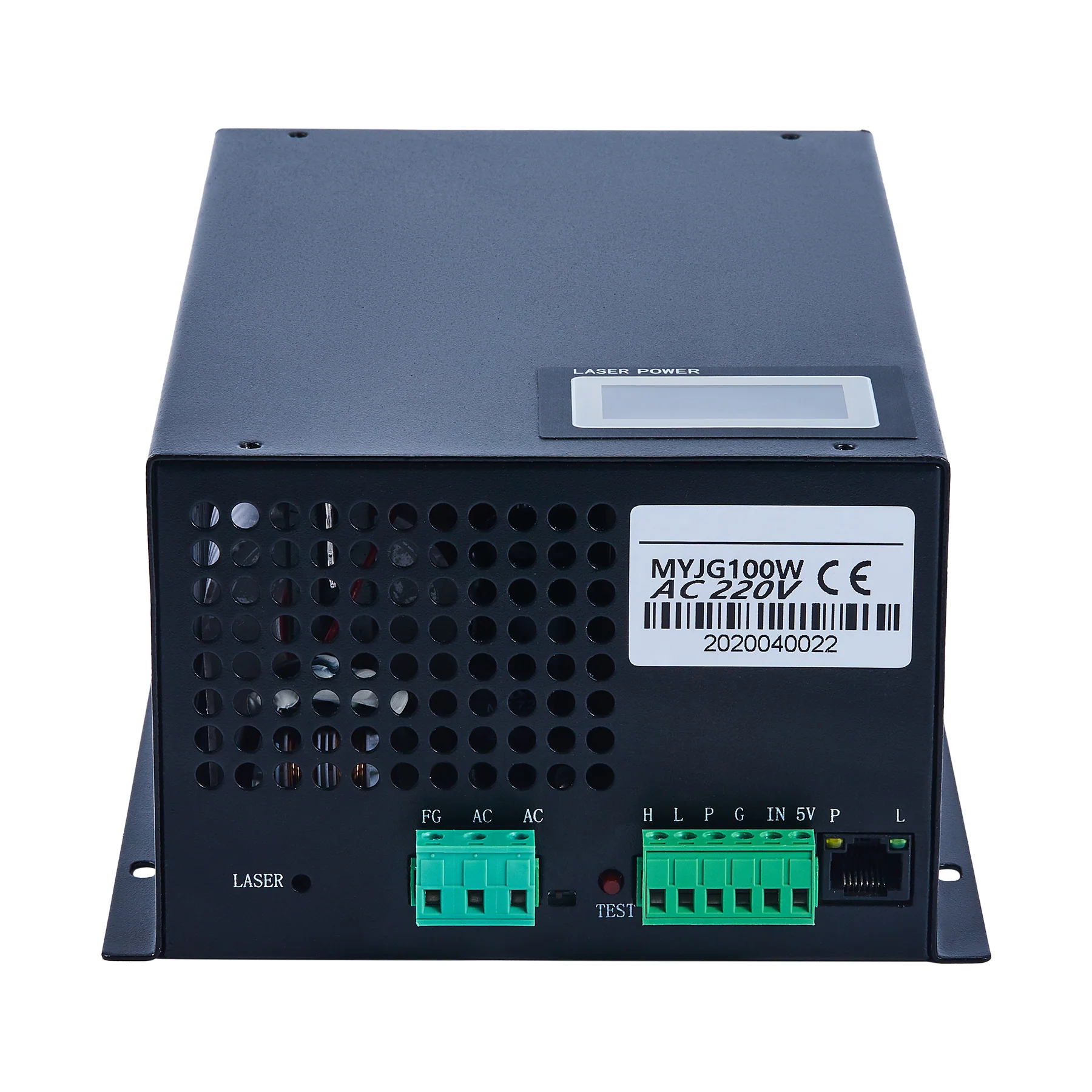

• Convenient Testing: Control and test the working current of your laser using the closed-loop feedback and the physical TEST button to ensure your laser engraver is functioning properly.
• Open-Circuit Protection: A protection circuit combined with a well-grounded enclosure ensure our power supply properly handles open-circuit faults and increases the service life of our power supply and your laser tube.

Package Includes:

• 1 x 100W Laser Power Supply

Warranty:

• No need to worry! We offer a 1-year warranty on all machines.
• 6-month warranty on consumables (i.e. laser tube and power supply)

Certifications:

• CE Certification
